Simon Karman

Cloud Consultant and Game Developer

Karman Home

An application set for a home server with identity and chat functionalities.

Published on 2022-08-22

Created by Simon Karman

Karman Home

Karman Home is a set of applications that functions as a home server, which means that it is meant to run on a computer in your local network. Currently Karman Home provides user identity and chat message functionalities.

Note: You can find the landing page at: If it is offline, you can run Karman Home yourself by following the 'Running Karman Home' documentation below.

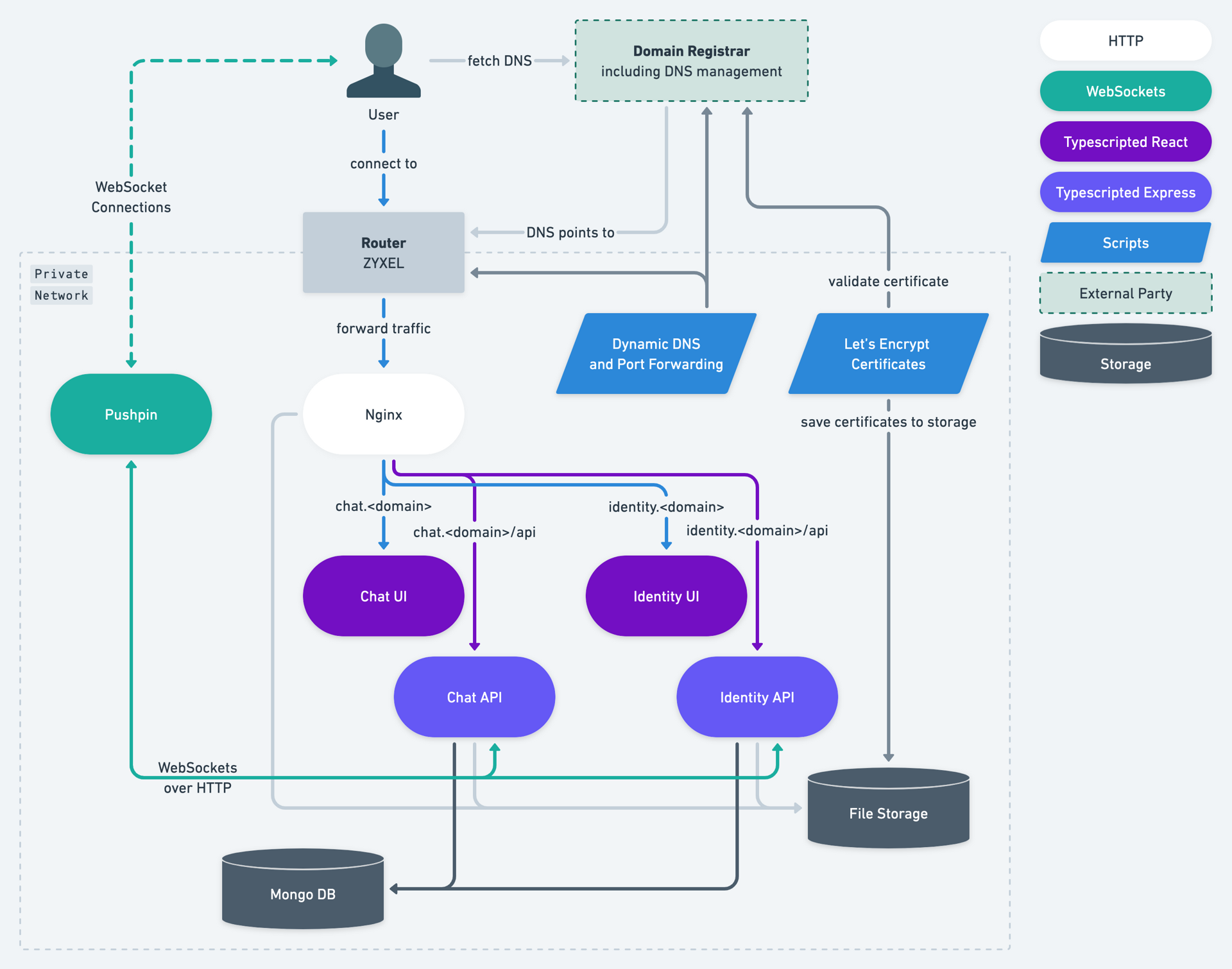

The following image shows all the components that make up Karman Home.

Karman Home Architecture

The reverse proxy, build using nginx (http), Pushpin (websockets) and the scripts, can be found in the ingress/ directory

The microservices, build using NodeJS TypeScript with the Express framework, can be found in the identity/api/ and chat/api/ directories.

The frontend web applications, build using React in Typescript, can be found in the identity/ui/ and chat/ui/ directories.

Running Karman Home

  1. Replace any references to in the code with your own domain name.

  2. Set up your DNS provider to point to the ip address of your home router and forward this traffic (ports 80 and 443) from your router to the machine that will be running Karman Home. You can find an automated script for this in ingress/dns. Note that this currently only supports a ZYXEL router and the NeoStrada api for DNS management.

  3. Generate a valid Let's Encrypt certificate for your domain name. More information can be found in ingress/certificate.

  4. Run the application set using docker-compose.

docker-compose up --build --remove-orphans -d
  1. Add the following MongoDB collections to MongoDB running at localhost:7017/ using Mongo DB Compass:
    1. An empty collection: chat/Messages.
    2. A collection: identity/Users with the following data.
     "_id": { "$oid": "621d5d1267c4ae2108286042" },
     "username": "simon",
     "password": "$2b$10$8w6Ppy0HXa4n6Jp0dPiUrO0wv9hZHL5pYKaxWV35tpY6zh7B.uDWq",
     "scopes": [ "admin", "user" ]
     "_id": { "$oid": "621d5d1267c4ae2108286043" },
     "username": "lisa",
     "password": "$2b$10$JDIQgdDisrSRuDfRgAiFkuvVL24rpXwwyVZENY9Khf.p9dlvkZTp.",
     "scopes": [ "user" ]
  1. Go to https://home.<your-domain-name> using your favorite browser. You can find the identity and chat functionality from there, and when prompted you can log in as an admin with username simon and password 123 or log in as a user with username lisa and password 456.

Kaman Home - Home

  1. To stop the application, run docker-compose down and disable the port forwarding and remove the DNS records your created in step 2. You can find an automated script for this in ingress/dns.


The identity functionality providers users in Karman Home to login and logout. The identity functionality is available by visiting https://identity.<your-domain-name> in your browser.

Note: If the t query parameter is added to the url (for example: https://identity.<your-domain-name>?t=<another-url>), then you'll be redirected to its value directly after login in.

Karman Home - Identity


The chat functionality provides users in Karman Home to send and receive chat messages in a single global chat room. The chat functionality is available by visiting https://chat.<your-domain-name>.

Note: Admins are able to delete messages, and new messages (or deletions) are received in realtime via a WebSocket connection.

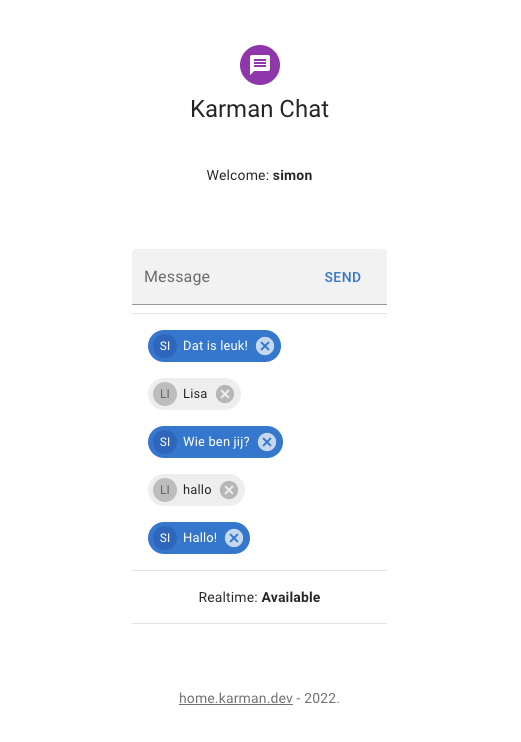

Karman Home - Chat
